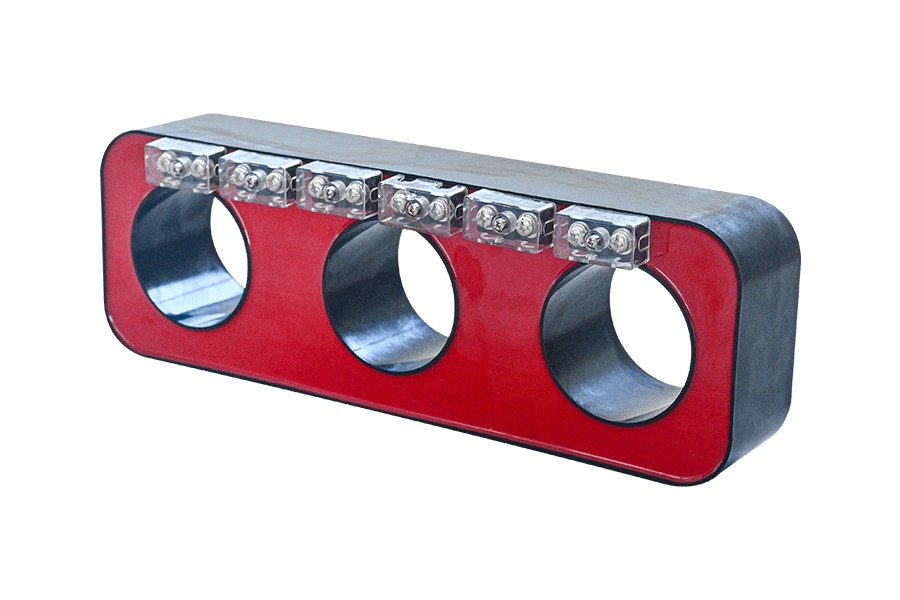

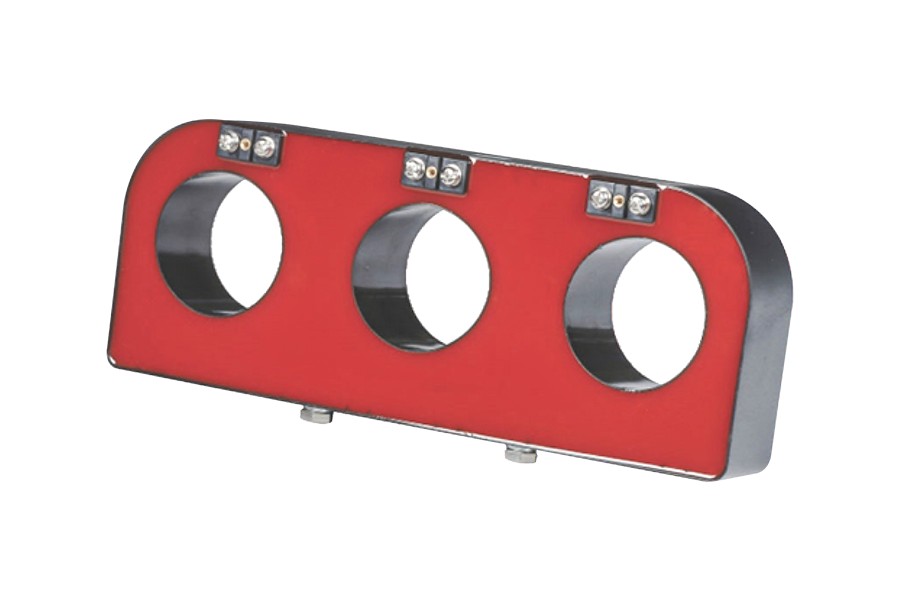

LSY Inflatable scrinium Current Transformer

Vultus pro certo LSY Inflatable Cabinet Current Transformer solutionem? Comewill, opificem professionalem Sinarum e Sinis officinas directas praebet arcae tres-phase inflatabiles speciales transformatores currentium in Sinis factis. Accurate currenti vigilantia in systemata media-voltage distributionis destinati, hi transformatores notant compages compactas, nullas res stabiles, et facultates mensurae accuratas.

Mitte Inquisitionem

depictio producti

Purchase high-quality LSY Inflatable Cabinet Current Transformers e Comewill, fabricator Sinarum professionalis et elit. Cum accuratione mensurae altae, designatio insulationis signatae et institutionem flexibilem, fructus nostri tutam vigilantiam et tutelam medii voltage switchgear moderni sustinent.

Quid est LSY Inflatable Cabinet Current Transformer?

LSY Inflatable scrinium Current Transformer a Comewill elaboratum designatur specialiter ad gas- insulatas switchgear (GIS) mediae intentionis et systematum arcae inflatibiles. Essentiale est ad stabilitatem systematis conservandam, apparatum onerare praeveniens, et coordinationem certae tutelae procurans.

Product Features

1. Accurate Three-Phase Current Cras

Transfigurator altam praecisionem tradit mensurae currentis, ut reale tempus magnae magnitudinis et fluctuationis in tribus systematibus hodiernae reddat. Hoc permittit operariis ut condiciones abnormitates deprehendere sicut onerare, iniquitate vel culpa maturescere et actionem emendam accipere antequam damnum inveniat.

2. Foedus et Spatium-Saving Design

Compacta structura et leve consilium LSY Inflatable Cabinet Current Transformers patitur institutionem flexibilem sine affectibus aliis componentibus intra switchgear.

3. Signati Nulla Structure

Haec structura efficaciter dissociatur systematis flexuosi interni ab humiditate, pulvere, et impedimento externo, ut diuturnum tempus stabiliatur et perficiatur fides.

4. Multiple Sagaciter Options

LSY Inflatable Cabinet Current Transformer sustinet mensuras, tutelas et figuras duplices anfractus, permittens fabrum ad functiones tutelae metrorum et cursus in eadem ratione integrare.

5. Dura Industrial Construction

Fabricata per altum qualitas materiae magneticae et praecisio technologiae flexae, commutator stabilem observantiam servat etiam sub onere continuo condiciones.

Partialis Product Parameter

LSY-10/107	Vena prima rated (A)	Sagaciter genus (mensurae)			Sagaciter genus (praesidium)			Sagaciter genus (duplex flexuosa)
	Vena prima rated (A)	0.2S	0.2	0.5	10P10	10P15	10P20	0.2S	0.5	10P10	10P15
	75	2	2	1	2.5	--	--	--	1	1	--
	100	2.5	2.5	2.5	5	--	--	--	1	1	--
	150	2.5	2.5	2.5	5	--	--	--	1.5	1.5	--
	200	5	5	2.5	7.5	--	--	--	2.5	2.5	--
	300	5	5	5	7.5	--	--	--	2.5	2.5	--
	400	10	10	5	15	--	--	--	5	5	--
	500	10	10	10	15	--	--	--	5	5	--
	600	10	15	10	15	--	--	--	5	7.5	--
	800	10	15	10	20	--	--	--	5	7.5	--
LSY-10/110	75	-	-	1	-	-	-	-	1	-	-
	100	-	-	2.5	-	-	-	-	1	-	-
	150	-	-	2.5	2.5	-	-	-	1.5	-	-
	200	-	2.5	2.5	5	-	-	-	2.5	5	-
	300	2.5	2.5	5	5	-	-	-	2.5	5	-
	400	5	5	5	7.5	-	-	-	5	7.5	-
	500	5	5	10	10	-	-	-	5	10	-
	600	5	10	10	10	-	-	-	5	10	-
	800	10	10	10	10	-	-	-	5	10	-
LSY-10/120	75	75	-	-	1	-	-	-	-	1	-
	100	100	-	-	2.5	-	-	-	-	1	-
	150	150	-	-	2.5	2.5	-	-	-	1.5	-
	200	200	-	2.5	2.5	2.5	5	-	-	2.5	5
	300	300	2.5	2.5	5	5	5	-	-	2.5	5
	400	400	5	5	5	5	7.5	-	-	5	7.5
	500	500	5	5	5	10	10	-	-	5	10
	600	600	5	5	10	10	10	-	-	5	10
	800	800	10	10	10	10	10	-	-	5	10
LSY-10/127	75	-	-	1	-	-	-	-	1	-	-
	100	-	-	2.5	-	-	-	-	1	-	-
	150	-	-	2.5	2.5	-	-	-	1.5	-	-
	200	-	2.5	2.5	5	-	-	-	2.5	5	-
	300	2.5	2.5	5	5	-	-	-	2.5	5	-
	400	5	5	5	7.5	-	-	-	5	7.5	-
	500	5	5	10	10	-	-	-	5	10	-
	600	5	10	10	10	-	-	-	5	10	-
	800	10	10	10	10	-	-	-	5	10	-
LSY-10/130	75	-	-	1	-	-	-	-	1	-	-
	100	-	-	2.5	-	-	-	-	1	-	-
	150	-	-	2.5	2.5	-	-	-	1.5	-	-
	200	-	2.5	2.5	5	-	-	-	2.5	5	-
	300	2.5	2.5	5	5	-	-	-	2.5	5	-
	400	5	5	5	7.5	-	-	-	5	7.5	-
	500	5	5	10	10	-	-	-	5	10	-
	600	5	10	10	10	-	-	-	5	10	-
	800	10	10	10	10	-	-	-	5	10	-
LSY-10/150	75	-	-	1	-	-	-	-	1	-	-
	100	-	-	2.5	-	-	-	-	1	-	-
	150	-	-	2.5	2.5	-	-	-	1.5	-	-
	200	-	2.5	2.5	5	-	-	-	2.5	5	-
	300	2.5	2.5	5	5	-	-	-	2.5	5	-
	400	5	5	5	7.5	-	-	-	5	7.5	-
	500	5	5	10	10	-	-	-	5	10	-
	600	5	10	10	10	-	-	-	5	10	-
	800	10	10	10	10	-	-	-	5	10	-

Forma technica notitia

Usus	Mensuræ current transformers			Praesidium current TRANSFIGURATOR			Duplex anfractus vena TRANSFIGURATOR
Usus	Accuracy and rated onus (VA)			Accuracy and rated onus (VA)			Cura genus et onus rated
Confirmare primaria current	0.2s	0.2	0.5	10P20	10P15	10P10	0.2s	0.5	10P15	10P10
75	-	-	1	-	-	-	-	1	-	-
100	-	-	2.5	-	-	-	-	1	-	-
150	-	-	2.5	-	-	2.5	-	1.5	-	-
200	-	2.5	2.5	-	-	5	-	2.5	-	5
300	2.5	2.5	5	-	-	5	-	2.5	-	5
400	5	5	5	-	-	7.5	-	5	-	7.5
500	5	5	10	-	-	10	-	5	-	10
600	5	5	10	-	-	10	-	5	-	10
800	10	10	10	-	-	10	-	5	-	10

Nota: Immaculatam ferrum vere card est nativus secundum usoris requisita

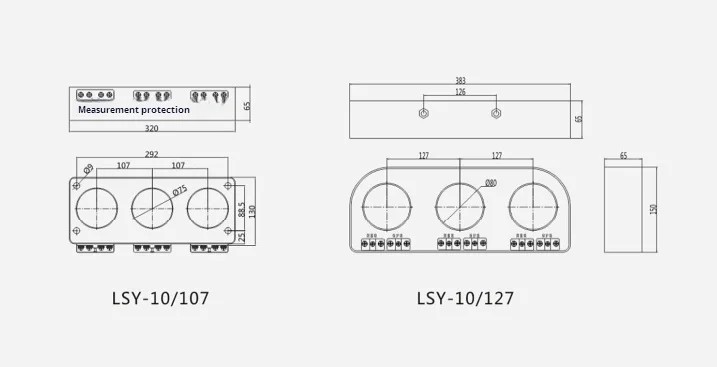

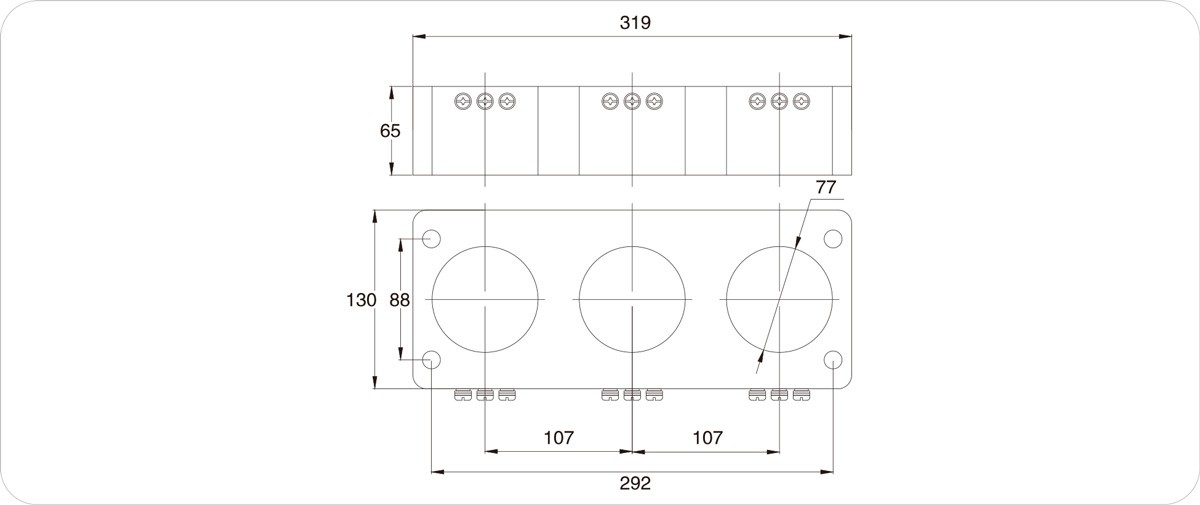

Altiore ratio Tractus

Quid nos eligimus?

COMEWILL tria subsidiaria (Juyi, Parber, Lexin) habet et systematis R&D, productionis, venditionum et servitiorum plenam - catenam aedificavit.
Nostra producta tegunt amplis elementorum electricorum quasi cable obturaculum - in connectoribus, currentibus et voltages transformatoribus, temperaturae et humiditatis moderatoris, electromagnetici seras et calentium. Commissum nobis offerentes clientium qualitatem productorum et officia. Et progressi ad melius satisfaciendum suis necessitatibus servamus.
