Comewill officinas SGB Series Three-Phase Non encapsulata Dry-Type Transformer solutio est pro users quaerentibus ut commercium sicco-typum emere pro applicationibus industrialibus et mercatoriis. Designatur cum margine velit, ambitus magnetici optimiization et modularis constructionis, transformator altam salutem, efficientiam, et aptabilitatem environmental praebet.

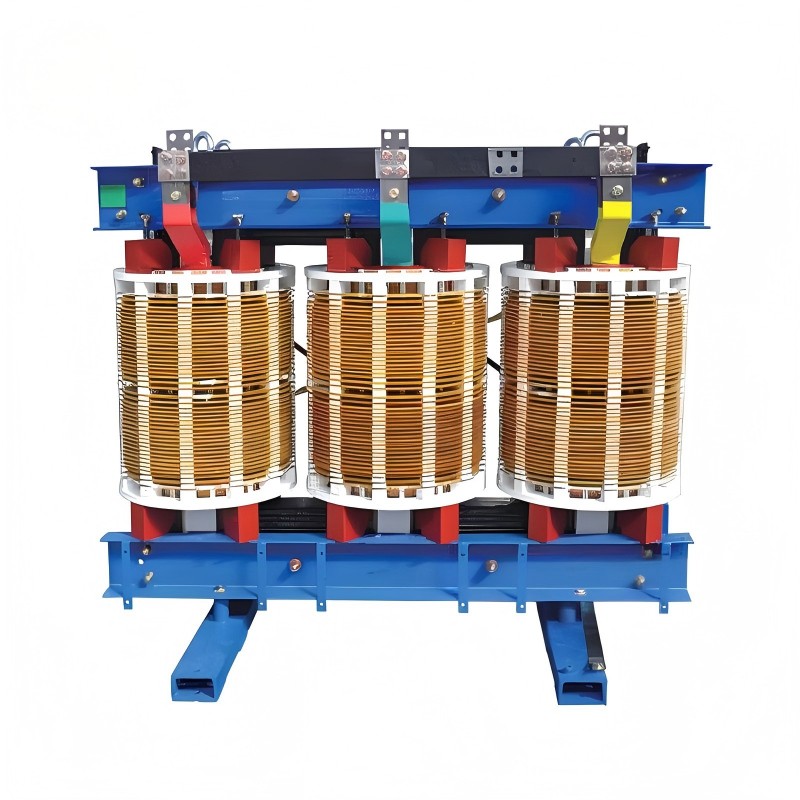

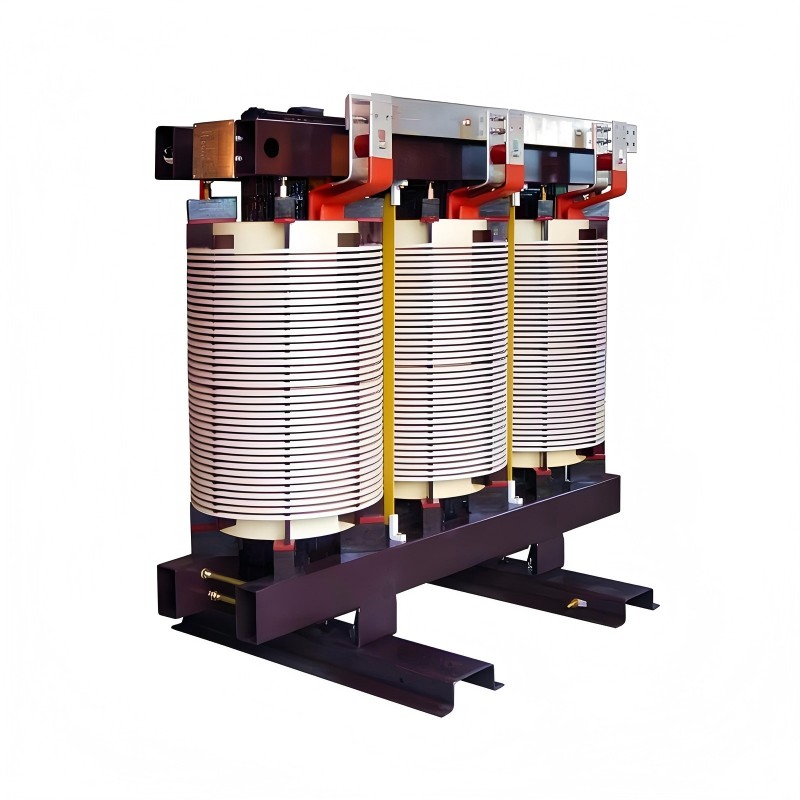

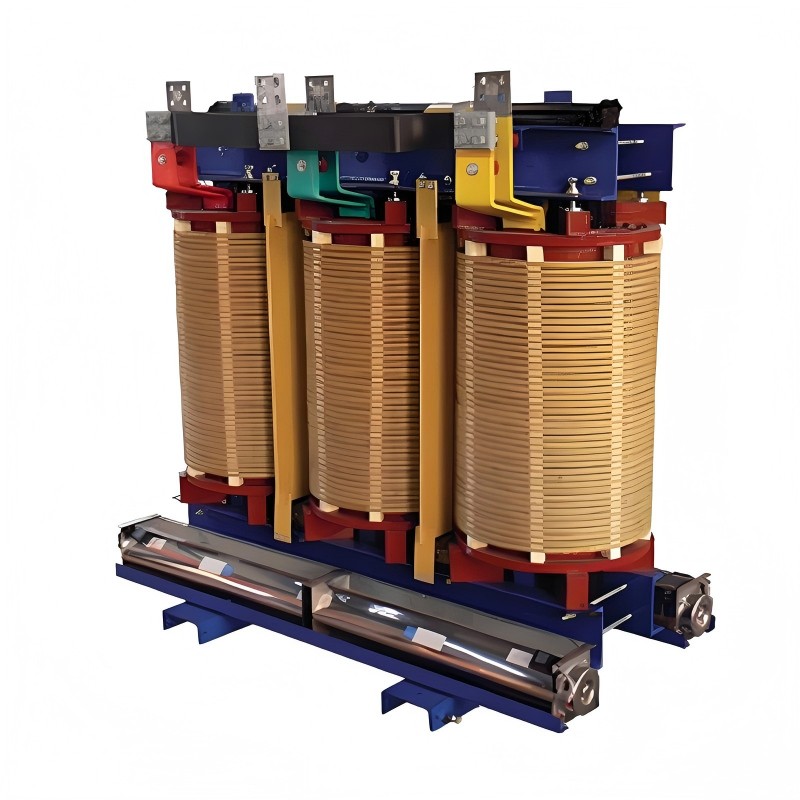

In SGB Series Three-Phase Non Encapsulata Dry-Type Transformer est non-encapsulata transformator sicco-typus qui utitur technologia vacuo pressus impregnationis (VPI) technologiae pro resinae traditae abjectione. Hoc specialiter dispositum est;
Medium-voltage ad low-voltage potentiae transformationis (10-35kV / 0.4kV)
Indoor and semi-velit officinae
Applicationes requirit ignem altum salutem et humorem resistentia
SGB Series Tres-Phase Non Encapsulatae Siccae Typus Transformer multiplices technologias provectas integrat ut certa et efficiens operatio:
1. Provectus Magnetic Core Design
Summus permeability laminated Pii steel
Reducit core lapsu structurae gressum damnum
Effective supprimit tertiam harmonicam corruptelam
2. princeps euismod Insulation System
Nulla ratio dual (H-genus + NOMEX®)
Praeclara scelerisque resistentia et vires dielectricae
Repugnant chemica corrosio et humiditas

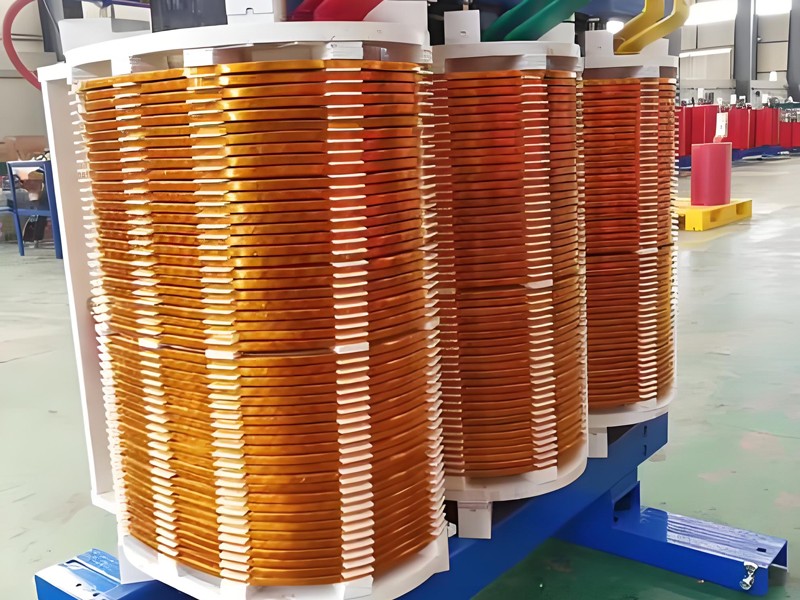

3. Optimized Winding Structure
Summus voltage: Nunc massae structuram
Low-voltage: Foil obliqua pro uniformi current distributione
Consectetur breve spatium resistentia et vi mechanica
4. efficiens Scelerisque Management
Open evacuatione consilio melius refrigerationem efficientiam
Humilis damnum materiae reducere calorem generationis
Operatio stabilis etiam in > XCV% humiditas ambitibus
5. VPI Processus Vestibulum
Vacuum secundarium pressura impregnationis
Validus humor-probationis et pollutionis repugnans capacitatis
Maxime humilis partialis missio, extensa muneris vita
6. Safety and Environmental Protection
Non flammabiles et explosiones consilio-probationis
Plene recyclable materiae
Meets internationalis environmental signis
| Facultatem Rated (kVA) | Rated voltage | Vector group | Nullus onus damnum (W) | Load damnum (W) | Nullus onus current (%) | Impedimentum voltage (%) | ||||||||||
| HV (kV) | Ictibus range (%) | LV (kV) | 11# | 12# | 13,14# | 18# | ||||||||||
| 10# | 11# | 12# | 13# | 14# | 18# | 120℃ | 120℃ | 120℃ | 145 | |||||||
| 100 | 6 6.3 6.6 10 10.5 11 | ±5 Or ± 2 X 2.5 | 0.4 | Dyn11 vel Yyn0 | 400 | 360 | 320 | 290 | 270 | 230 | 1570 | 1415 | 1520 | 0.7 | 4 | 4 |
| 125 | 470 | 420 | 375 | 340 | 320 | 270 | 1850 | 1665 | 1780 | 0.7 | ||||||
| 160 | 540 | 480 | 430 | 385 | 365 | 310 | 2130 | 1915 | 2050 | 0.7 | ||||||
| 200 | 620 | 550 | 495 | 445 | 420 | 360 | 2530 | 2275 | 2440 | 0.6 | ||||||
| 250 | 720 | 640 | 575 | 515 | 490 | 415 | 2760 | 2485 | 2665 | 0.5 | ||||||
| 315 | 880 | 790 | 705 | 635 | 600 | 510 | 3470 | 3125 | 3355 | 0.5 | ||||||
| 400 | 980 | 880 | 785 | 705 | 665 | 570 | 3990 | 3590 | 3850 | 0.5 | ||||||
| 500 | 1160 | 1040 | 930 | 835 | 791 | 670 | 4880 | 4390 | 4705 | 0.4 | ||||||
| 630 | 1340 | 1200 | 1070 | 965 | 910 | 775 | 5880 | 5290 | 5660 | 0.4 | ||||||
| 630 | 1300 | 1170 | 1040 | 935 | 885 | 750 | 5960 | 5365 | 5760 | 0.35 | 6 | 6 | ||||
| 800 | 1520 | 1360 | 1215 | 1095 | 1035 | 875 | 6960 | 6265 | 6715 | 0.35 | ||||||
| 1000 | 1770 | 1590 | 1415 | 1275 | 1205 | 1020 | 8130 | 7315 | 7885 | 0.3 | ||||||
| 1250 | 2090 | 1880 | 1670 | 1505 | 1420 | 1205 | 9690 | 8720 | 9335 | 0.3 | ||||||
| 1600 | 2450 | 2200 | 1960 | 1765 | 1665 | 1415 | 11730 | 10555 | 11320 | 0.25 | ||||||
| 2000 | 3050 | 2740 | 2440 | 2195 | 2075 | 1760 | 14450 | 13005 | 14005 | 0.2 | ||||||
| 2500 | 3600 | 3240 | 2880 | 2590 | 2450 | 2080 | 17170 | 15445 | 16605 | 0.2 | ||||||
| 1600 | 2450 | 2200 |
|
1765 |
|
|
12960 | 11660 |
|
0.2 | 8 | 8 | ||||
| 2000 | 3050 | 2740 |
|
2195 |
|
|
15960 | 14360 |
|
0.2 | ||||||
| 2500 | 3600 | 3240 |
|
2590 |
|
|
18890 | 17000 |
|
0.2 | ||||||
Suboles platforms et ambitus marini
Plantae chemicae et petrochemicae
Summus ortus commercial aedificia et data centers
Airports, valetudinaria, systemata transitus plenas
Industriae vestibulum facilities
Humidum vel summus temperatus regiones (climata tropica)
Modularis et aperta structura conservationem facit SGB Series Trium Phase Non Encapsulatae Typus Siccae Transformator simplex et sumptus efficens:
Iusto recognitionis
Reprehendo pro pulvis cumulus et munda VENTILATIO canales
Inspice nexus ad laxationem vel overheating
Environmental Cras
Curare propriam evacuationem et nimiam contagionem vitare
Commendatur intra limites ponere humiditatem fieri
Electrical Testis
Nulla resistentia metimur periodice
Monitor condiciones et temperatus ortum onus
Praecaventur sustentacionem
Mundus ambages et core superficies
Inspice signa corrosionis vel turpis degradationis
