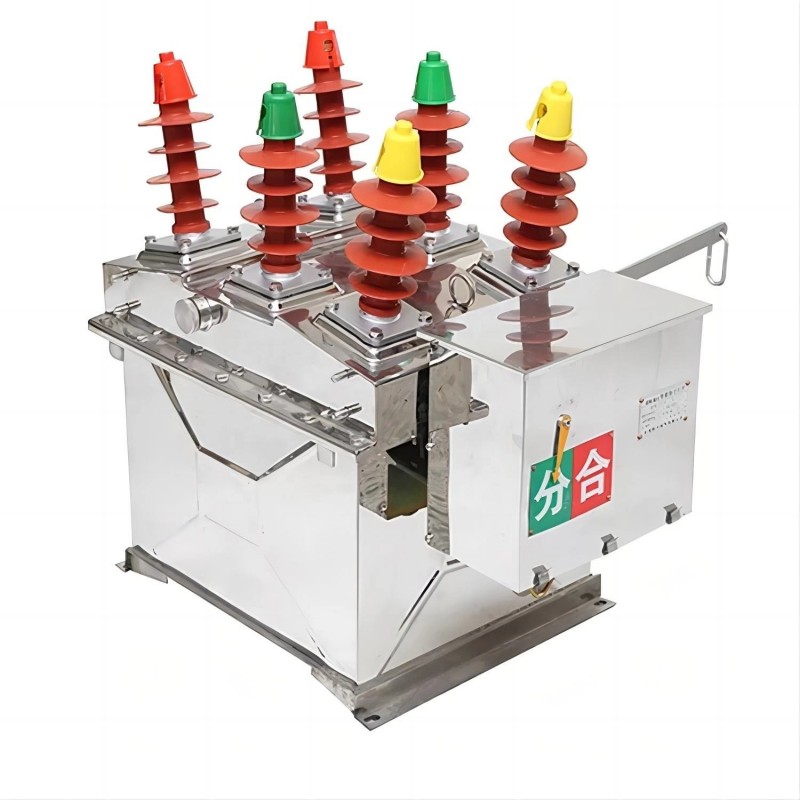

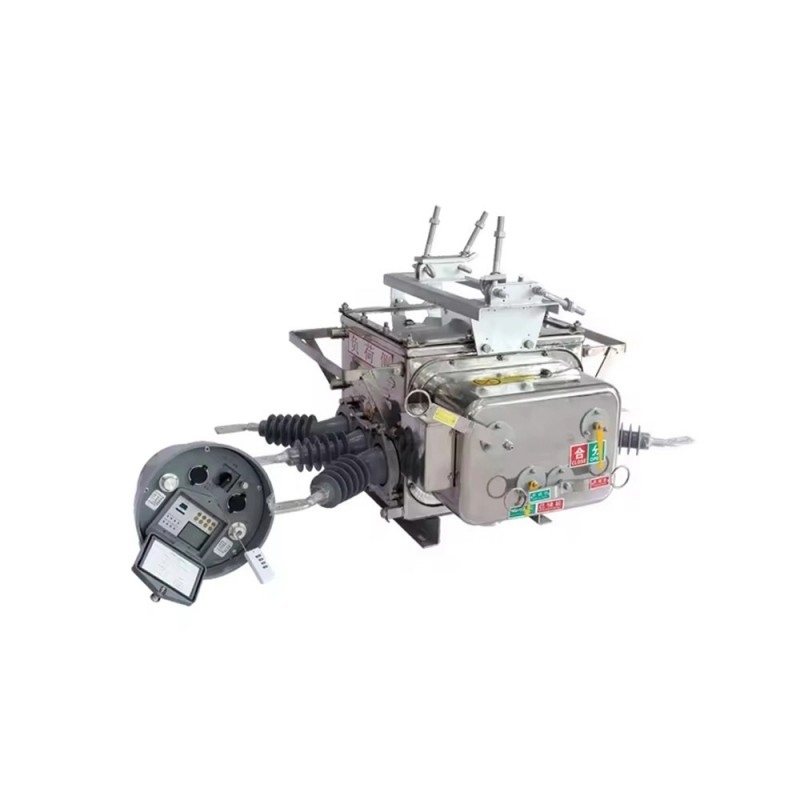

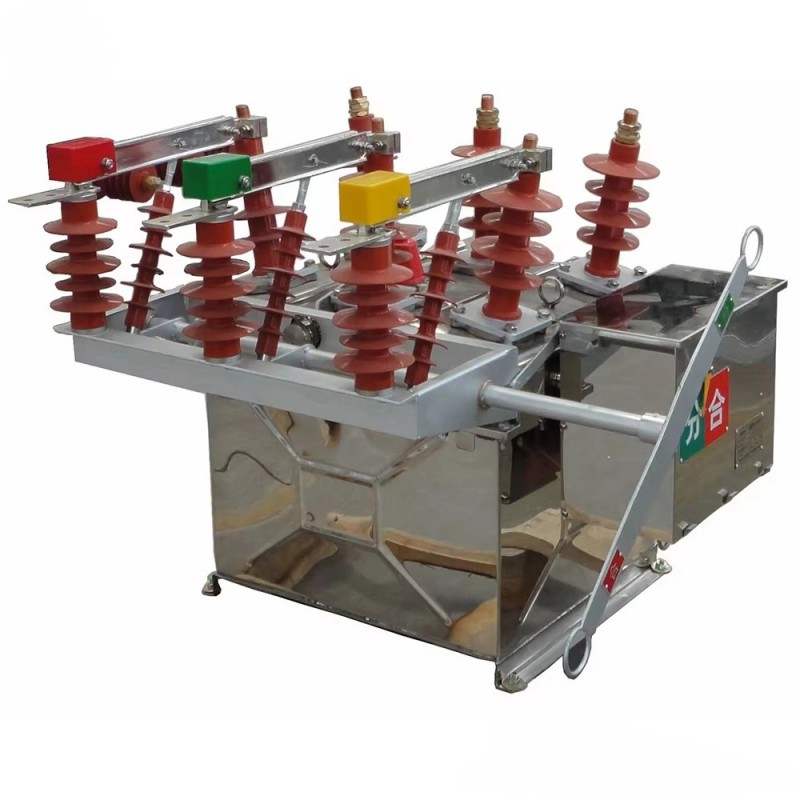

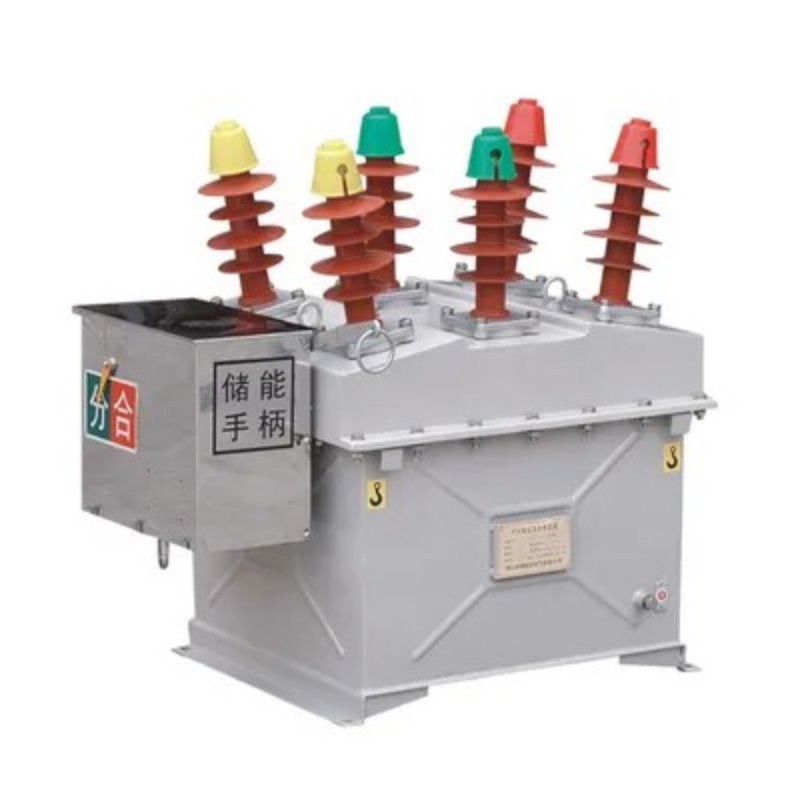

Cum fabrica professionalis in Sinis, Comewill in mercatu domestico magnam famam habet, pro certo accedens ad ZW8 Outdoor High intentioni AC VCB. The ZW8 Outdoor High intentioni AC VCB notae qualitatem sensibili pretio praestabant, electiones procurationis oeconomicae exhibentes.
Mandata excipimus singula OEM et ODM pro ZW8 Outdoor High intentioni AC VCB ut obviam nativus procurationem exigat.
Temperatura ambiens: -10ºC~+40ºC.
Altitude: ≤1000m (praeter requisita procurationis speciales).
Relativum humiditas: Quotidie mediocris ≤95%; Mediocris menstrua ≤90%.
Vapor saturatum pressura: Quotidie mediocris ≤2.2kPa; Mediocris menstrua ≤1.8kPa.
Terraemotus intensio: ≤8 gradus.
Situs institutionis liberae esse debent ab igne, explosione periculorum, pollutio gravis, corrosio chemica, et vibratio violenta ut optimam observantiam ZW8 Outdoor High intentioni AC VCB curet.
| Item | Unitas | Parameter | |||
| Rated Voltage | kV | 12 | |||
| Ratum Current | A | 630 | |||
| Rated brevis-circuitu Fractio Current | KA | 6.3 | 12.5 | 20 | |
| Rated breve circuitus Condita Current (Peak) | KA | 16 | 31.5 | 50 | |
| Rated Pecco sustine Current | KA | 16 | 31.5 | 50 | |
| Rated breve tempus sustine Current | KA | 6.3 | 12.5 | 20 | |
| Rated Insulation Level | 1min Power FrequencyWithstand intentione (Arida Test) | kV | 42 | ||
| Fulmen impetus sustinere intentione (Peak) | kV | 75 | |||
| Rated Sequentia Operating |
|
O-0.3s-C O-180s-CO | |||
| Mechanica Vita | temporibus | 10000 | |||
| Rated brevis-circuitu Current Breaking Times | temporibus | 30 | |||
| Rated propinquus intentione operantis | V | 110, 220 | |||
| Rated dedicatio intentionis operantis | V | 110, 220 | |||
| Clearance inter Open Contactus | mm | 11± 1 | |||
| Per peregrinatione Contactus | mm | 3 | |||
| Tres tempus Oris / Claudendo Synchronisation | ms | ≤ 2 | |||
| Claudendo GRAVIS Tempus | ms | ≤ 2 | |||
| Mediocris foramen Volo | m/s* | 1.0± 0.2 | |||
| Mediocris Propinquus Volo | m/s* | 0.7± 0.15 | |||
| foramen Tempus | Summa Operating intentione | s | 0.015~0.05 | ||
| Lowest Operating intentione | s | 0.03~0.06 | |||
| Claudendo Tempus | s | 0.025~0.05 | |||
| Principalis loop resistentia uniuscuiusque Phase | μ Ω | ≤ 120 | |||
| Totalis Crassitudo licitae gere movendi et static Contactus | mm | 3 | |||
