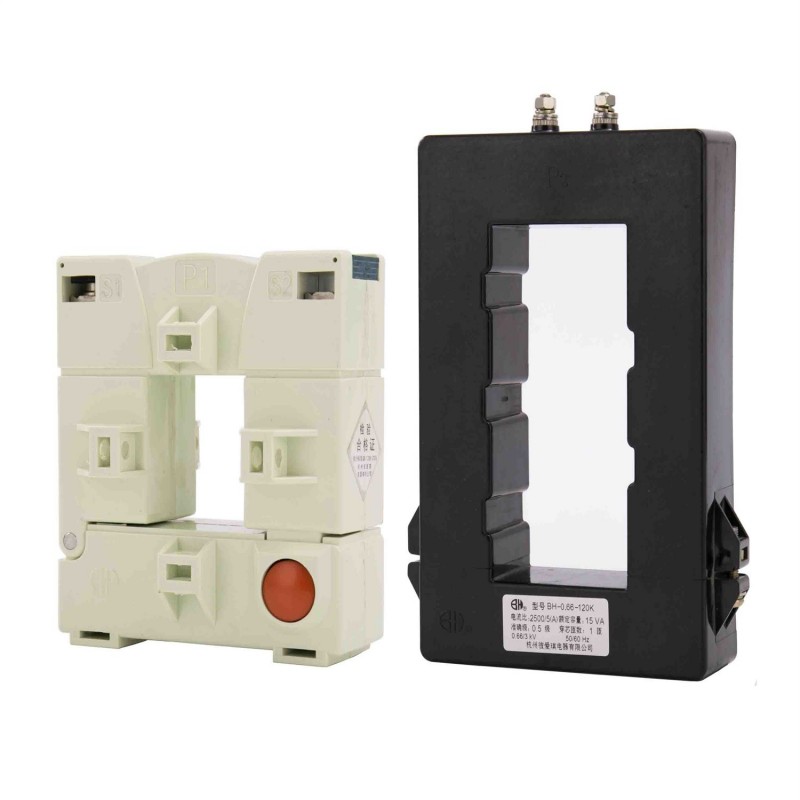

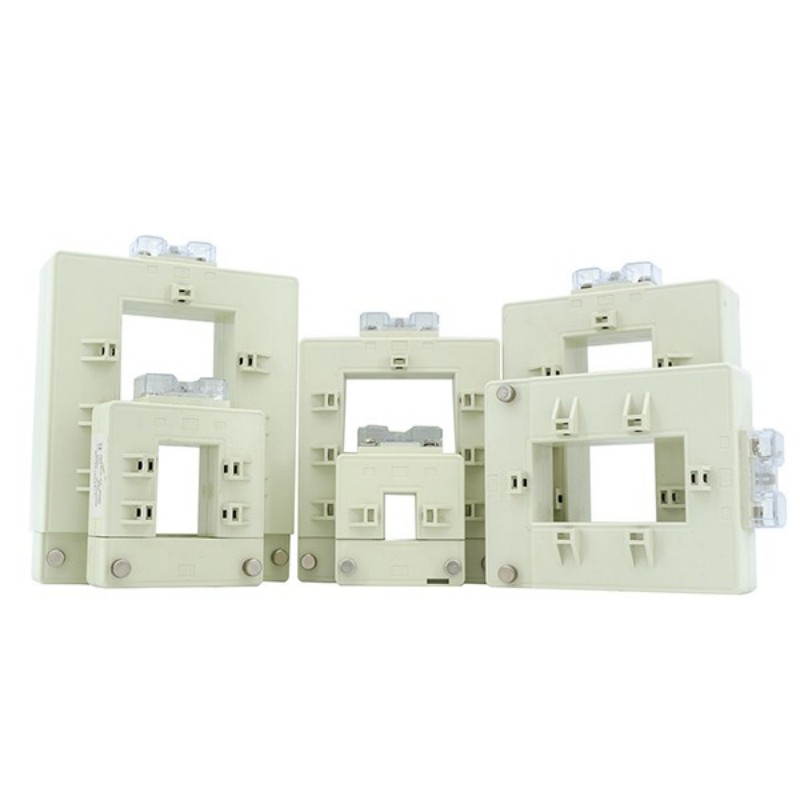

Comewill officinas princeps qualitas BH-K Series Split-core Current Transformer ad procurationem in AC circuitibus apta est cum aestimata frequentia 50Hz et aestimata intentione laborantis 0.66kV et infra, hoc productum praestat accurate currenti et electrici energiae mensurae, plene occurrens technicis exigentiis procurationis inceptis.
| Sectio (m㎡) Number ofcore filis | 16 | 25 | 35 | 50 | 70 | 95 | 120 | 150 | 185 | 240 | |
| 1core | VV | 10.7 | 125 | 14.0 | 153 | 17.1 | 19.4 | 21.1 | 25.0 | 25.4 | 28.3 |
| YJV | 97 | 11.4 | 125 | 141 | 16.2 | 18.3 | 20.2 | 223 | 24.8 | 27.9 | |
| 2cores | VV | 18.5 | 220 | 191 | 219 | 24.5 | 28.1 | 30.5 | 33.9 | 37.3 |
|
| YJV | 17.9 | 21.3 | 23.6 | 26.7 | 310 | 35.1 | 39.0 | 433 | 48.2 | 54.3 | |
| 3cores | VV | 19.6 | 233 | 222 | 25.6 | 28.9 | 33.9 | 36.1 | 41.6 |
|
50.7 |
| YJV | 18.9 | 226 | 25.1 | 28.5 | 33.2 | 37.6 | 41.8 | 46.4 | 517 | 58.3 | |
| 4cores(3+1) | VV | 21.5 | 25.6 | 25.6 | 30.0 | 33.6 | 38.6 | 42.4 | 48.5 | 428 | 55.4 |
| YJV | 20.6 | 24.8 | 27.6 | 316 | 36.8 | 41.8 | 46.5 | 516 | 57.6 | 64.8 | |
| 4cores | VV | 21.0 | 24.6 | 24.9 | 281 | 32.6 | 37.9 | 40.4 | 44.6 | 49.3 | 55.6 |
| YJV | 22.4 | 272 | 30.5 | 35.0 | 40.8 | 46.4 | 51.7 | 57.4 | 64.1 | 723 | |
Installation Location: Indoor setting.
Ambiens Temperature: Rationes ab -5℃ ad +40℃; cotidie mediocris temperatus +30℃ non excedat.
Elevatio: Non plus quam 1,000 metra supra mare campester.
Umor Conditiones: Ad maximam ambientium temperiem +40℃, humiditas aeris relativa non excedet 50%. In inferioribus temperaturis, humiditas aeris licita relativa 80% non excedat.
Aer Quality: Aer ambiens gravi contagione carebit. Vapores, vapores, pulverem conductivum non continebit in concentratione sufficienti ad corrosionem metallicam vel corruptionem velit.
Vibratio et quassatio: Institutionem situs de BH-K Series Split-core Current Transformer libera erit a vehementi tremore et impulsu.
Environmental Patefacio: Locus institutionis a directo solis, pluviae, nivis exesa et immoderata incrementi forma custodietur.
