Quaerens certum Lupum LZZJ-10Q Current Transformer? Comewill officinas summus perficientur tradit solutiones solutiones faciles cum signis GB1208. Nostrae resinae transformatores insulatae amplam primariam venam (5-1000A) sustinent cum factoribus FS<10 salus, ut diuturnum tempus stabiliatur in ambitus mutandi postulando. Socius cum Comewill ad partes professionales gradus electricas qui stricte globalis machinationis benchmarks occurrunt.

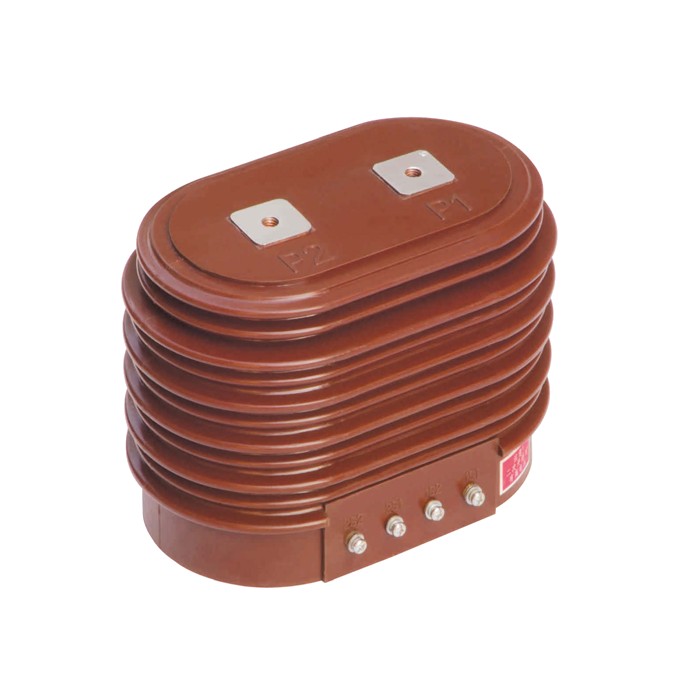

LZZJ-10Q Transformer Current est umbraculum, confirmatum genus commutatoris currentis. Adhibet structuram resinae epoxy plene inclusae, ambages primarias et secundarias cum summus permeabilitatis nucleus annularis integrans.
Rated Insulation Level: 12/42/75kV (prospicere salutem contra aestus)
Accuracy Classes: 0.2S, 0.2, 0.5, 10P15 (Versatile ad exosculationem et tutelam)
Ratio Current aestimavit: 5A ad 1000A/5A (vel 1A)
Standard Obsequium: GB1208 & International IEC equivalents.
Insulatio Integritas: Vacuum epoxy habitationi praebet sigillum airtight contra humorem, pulverem, et contaminantes chemicas, signanter extendens vitam servitii comparati exemplaribus apertis nucleis.
Dual-Frequentia Compatibilitas: Optimized pro utroque systemata 50Hz et 60Hz, id facit versatile asset pro inceptis internationalibus infrastructuris.
Altus Brevis Ambitus Fortitudo: Cum dynamica stabilitate aestimationes ad 90kA (pro 1000/5A exemplorum), LZZJ-10Q conservat integritatem structuram in conditionibus culpae.
Low phase Displacement: Designed with a 0,8 pigri factor to ensure high-precision metering for energy billing.
Comewill LZZJ-10Q est "cor" vigilantiae in variis ambitibus criticis;
Switchgears industriae: Integral pro 10kV-12kV umbraticis vacuum circuit ruptor unitatum.
Energy Management: High-curacy (0.2S class) metering for commercial building power consumption.
Nullam Praesidium: Reliable signal output for overcurrent and short circuit protection .
| LZZJ-10Q Current Transformer | |
| Nulla campester rated | 12/42/75kV |
| Onus potentia factor | 0.8(lag) |
| Rated prima vena | 5-1000A |
| Ratum secundarium current | 5A/1A |
| Product vexillum | GB1208 |
| salus factor | FS<10 |
| Product Model | Rated ratio current (A) | Level combination | Accuracy class and rated output (VA) COSФ=0.8 | I-secundum thermally firmum vena | Dynamica stabilitas current | |||
| 0.2S | 0.2 | 0.5 | 10P15 | |||||
| LZJC-10Q | 5/5 | 0.2S/10P150.2/10P150.5/10P15 | 10 | 10 | 10 | 15 | 0.4 | 0.8 |
| 10/5 | 10 | 10 | 10 | 15 | 0.8 | 1.5 | ||
| 15/5 | 10 | 10 | 10 | 15 | 1.1 | 2.3 | ||
| 20/5 | 10 | 10 | 10 | 15 | 1.5 | 3 | ||
| 30/5 | 10 | 10 | 10 | 15 | 2.3 | 4.5 | ||
| 40/5 | 10 | 10 | 10 | 15 | 3.8 | 7.5 | ||
| 50/5 | 10 | 10 | 10 | 15 | 5.6 | 11.3 | ||
| 75/5 | 10 | 10 | 10 | 15 | 7.5 | 15 | ||
| 150/5 | 10 | 10 | 10 | 15 | 11.3 | 23 | ||
| 200/5 | 10 | 10 | 10 | 15 | 15 | 30 | ||
| 300/5 | 10 | 10 | 10 | 15 | 22.5 | 45 | ||
| 400/5 | 10 | 10 | 10 | 15 | 30 | 60 | ||
| 600/5 | 10 | 10 | 10 | 15 | 30 | 60 | ||
| 800/5 | 10 | 10 | 10 | 15 | 40 | 80 | ||
| 1000/5 | 10 | 10 | 10 | 15 | 45 | 90 | ||
| 1500/5 | 10 | 10 | 10 | 15 | 45 | 90 | ||
Q1: Quid interest inter 0.2S et 0.5 accurate classes?
A1:0.2S "specialis" summus praecisio classis pro late onere exosculationis adhibita est (accurate etiam ad 1% of currentis aestimatae), cum 0.5 vexillum est mensurae industrialis generalis.
Q2: Quid melius facit epoxy resinam fundentem quam velit traditam?
A2: Epoxy signa emittentes ambages et nucleum totaliter, praebens humorem superiorem resistentiam, anti-pollutionem proprietatum, et durabilitatem mechanicam.
