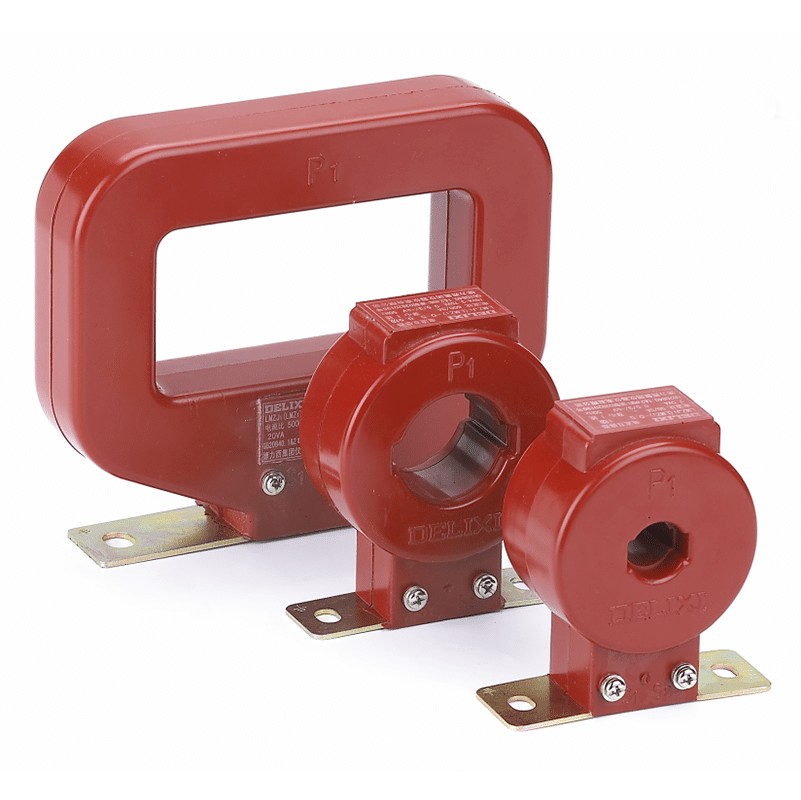

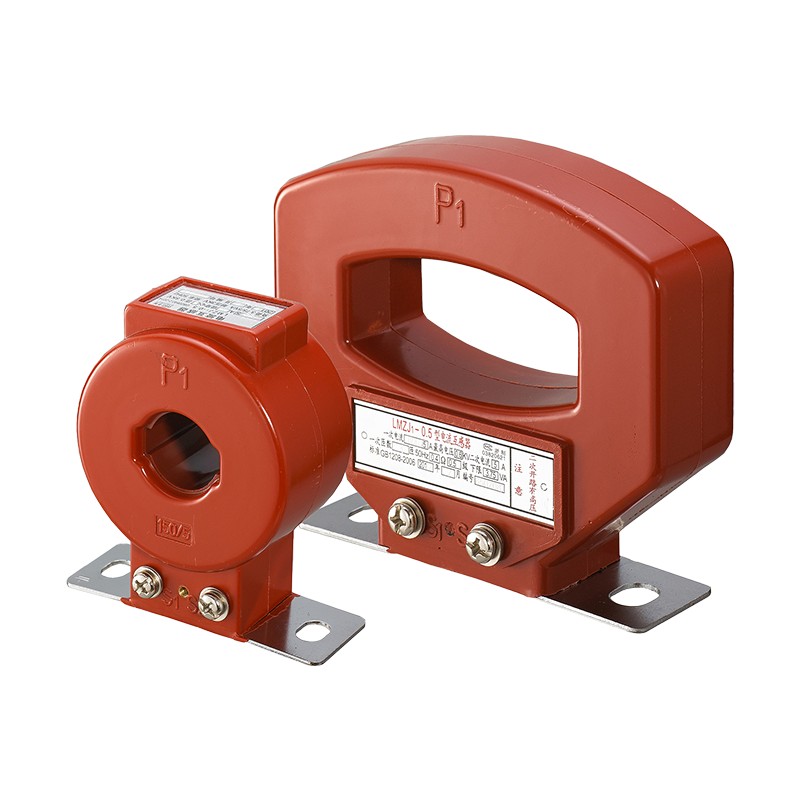

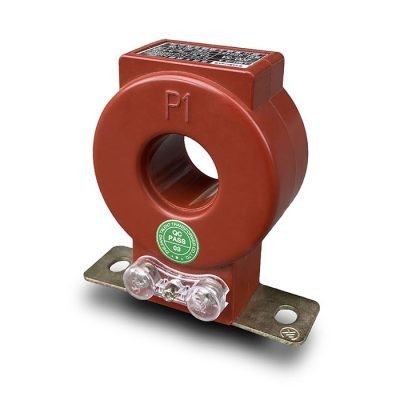

Cum fabrica professionalis in Sinis, Comewill velis tibi nativus LMZJ1-0.5 providere volet Transformer Current, qui uritur utens resinae velit technologiae technologiae fundens et fixum basium modum institutionis adhibet. Cum meliore stabilitate perficiendis et diuturnitate diuturnitatis, sumptus conservandos ab radice sociis procurandis servat. Multas et exquisitas suppeditat machinas optiones 0.2, 0,5, 0.2s, et 0.5s, faciliter applicatio diversarum applicationum in variis missionibus necessarias praebet.
Consilium structurale compactum magis flexibile institutionem et instruere instruere et duplicem sustentationem de summo gradu salutis conformationis et ultra longam vitam serviendi facit LMZJ1-0.5 Current Transformer certa electione in hodierna procuratione low-voltage systematis. Memorabile est quod haec humili volgatio transformator optimum caliditatem resistentiae et pollutionis resistentiae habet, et operationem stabilem etiam in ambitus asperis conservare potest, maximising valoris cuiuslibet obsidendi procurationem.
Core LMZJ1-0.5 Transformator Current est nucleus ferreus rotundus e schedulis ferri frigido-volutis ordinatis - haec praecisio ambages consiliorum clavis est ad efficientiam magneticam maximizandam et ad certam operationem fundandam.
Secundarius flexus circa hunc nucleum ferreum circularem aequaliter involvitur, quae ordinatio diligenter designata est, quae in omnibus condicionibus operantis congruenter perficiendis praestat et inaequales quaestiones excludit.
Fenestella media per medium producti decurrit et ad inconsutilem integritatem busbarum destinatur, dum basis robusta in fundo punctum institutionis tutiorem ac firmiorem praebet, facilem facit ad institutionem.
Tota pars ex resina insulationis materiae nonsaturatae eiicitur. Haec fortis armatura non solum vetustatem auget, sed etiam salutem meliorem praestat ac interna a pressione environmental tutatur, transformator consi- lium in variis ambitibus laborantibus facit.
| Parameter Electrical | Mechanica Parameter | ||
| Frequency | 50/60Hz | Casus | PC/UL94-V0 |
| Rated Input | 5A-5000A | Bobbin | PBT |
| range mensuræ | 5% In-120% In | Core | Silicon steel |
| Rated Output | 1A,5A | Construction | Screw |
| Ratio intentionis | 0.72KV (AC) | Operans Temp | 25℃～＋75℃ |
| Dielectric viribus | 3.0KV/1mA/1min | operating Umor | ≤85% |
| Nulla Resistentia | DC500V/100MΩ min | Output Connection | Terminal |
| Exemplar | Primarium / secundarium | Busbar foramen Dimensiones (mm) | Ratum Burden (VA) | Sagaciter Classis | Rated Voltage |
| LMZJ1-0.5 30 | 5/5A~ 300/5A | =31mm | 2.5~5 | 0.2S 0.5S 0.5 | 0.72KV(AC) |
| LMZJ1-0.5 35 | 5/5A~ 300/5A | =35mm | 2.5~5 | 0.2S 0.5S 0.5 | 0.72KV(AC) |
| LMZJ1-0.5 40 | 200/5A~500/5A | =42mm | 5 | 0.2S 0.5S 0.5 | 0.72KV(AC) |
| LMZJ1-0.5 50 | 400/5A~ 600/5A | =56mm | 5 | 0.2S 0.5S 0.5 | 0.72KV(AC) |
| LMZJ1-0.5 80 | 750/5A~ 1200/5A | =83mm | 10~20 | 0.2S 0.5S 0.5 | 0.72KV(AC) |
| LMZJ1-0.5 100 | 800/5A~2000/5A | =102mm | 10~30 | 0.2S 0.5S 0.5 | 0.72KV(AC) |
| LMZJ1-0.5 140 | 2000/5A~4000/5A | =142mm | 15~30 | 0.2S 0.5S 0.5 | 0.72KV(AC) |
| LMZJ1-0.5 180 | 5000/5A~6000/5A | =182mm | 15~30 | 0.2S 0.5S 0.5 | 0.72KV(AC) |

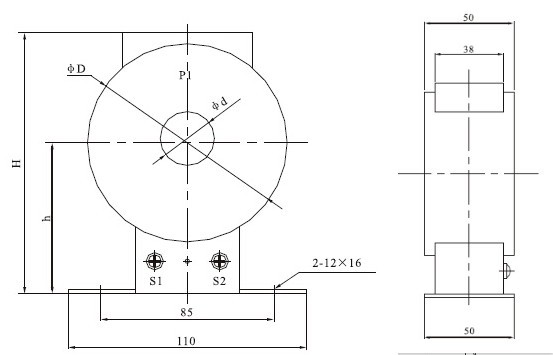

| Type | Current Ratio | H | h | φD | φd |
| LMZ1-0.5 | 5-300/5 | 117 | 68 | 90 | 30 |

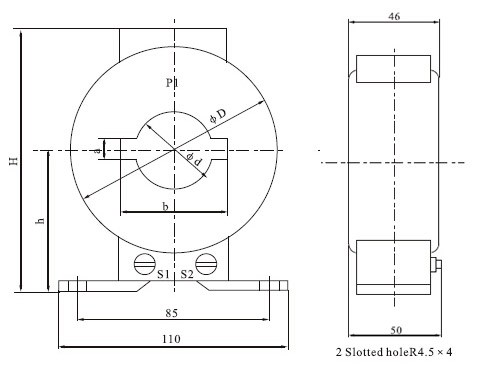

| Type | Current Ratio | H | h | φD | φd | a | b |
| LMZJ1-0.5 | 5-300/5 | 118 | 70 | 91 | 32 | 10 | 41 |
| 400-600/5 | 128 | 75 | 97 | 43 | 12 | 52 |

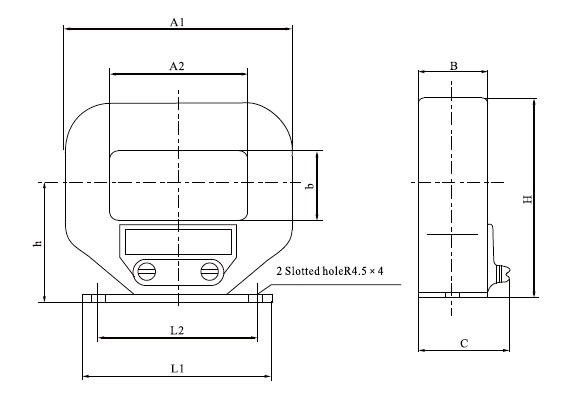

| Type | Current Ratio | A1 | A2 | B | h | H | L1 | L2 | C | b |
| LMZJ1-0.5 | 1000/51200/51500/5 | 172 | 104 | 30 | 80 | 140 | 156 | 123 | 41 | 50 |
| 2000/53000/5 | 216 | 140 | 42 | 102 | 182 | 175 | 150 | 46 | 70 | |
| 4000/55000/5 | 238 | 150 | 55 | 117 | 220 | 230 | 180 | 60 | 94 |
